當前位置：
設備用途：

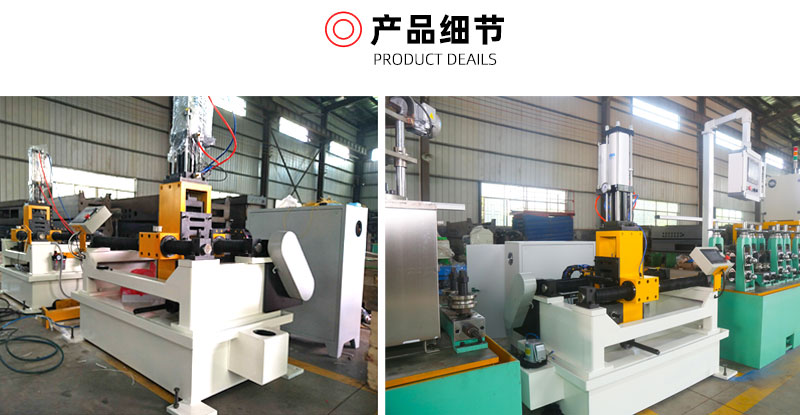

焊縫整平機的作用是將焊管焊縫余高碾壓整平，使焊縫與母材平整一致.
Purpose: the purpose of the weld-leveling equipment is to flatten the excess height of the welded pipe weld, so that the weld is in line with the base material.
主要技術參數Main technical parameters：
| 型號Model： | 整平范圍 Range of Pipe/Tube(mm) | 壁厚 Wall thickness(mm) | 電機功率 Motor power | 整平速度 Speed |
| ZPJ40 | Φ16-Φ50 | 0.8-2.0 | 11KW | 1.0-5.0m/min |
| ZPJ50 | Φ51-Φ76 | 0.8-2.5 | 11KW | 1.0-4.0m/min |
| ZPJ60 | Φ76-Φ89 | 1.0-3.0 | 15KW | 1.0-3.5m/min |
| ZPJ70 | Φ89-Φ159 | 1.0-3.5 | 18.5KW | 1.0-3.0m/min |
| ZPJ80 | Φ159-Φ219 | 1.5-4.0 | 22KW | 1.0-2.0m/min |
伺服整平機優點：Advantages of Servo type internal and external weld bead leveling equipment：
精度高：采用伺服電機驅動精密滾珠絲桿來帶動整平車 移動，運行更平穩柔和。
采用伺服電機速度提升快；耗電小、無需安裝冷卻塔和冷卻器水管、使用和維護成本低、占地面積小。
環保：無需液壓站、無液壓油污染，場地干凈。
安裝方便、便捷、設備就位調整中心、水平及高度后固定即可使用。
High precision: servo motor is used to drive precision ball screw to drive the whole flat car to move, running more smoothly and softly.
The speed of servo motor is fast;Low power consumption, no need to install cooling tower and cooler water pipes, low use and maintenance costs, small footprint.
Environmental protection: no hydraulic station, no hydraulic oil pollution, clean site.
Easy and convenient installation. The equipment can be put in place and fixed after adjusting the center, level and height.
